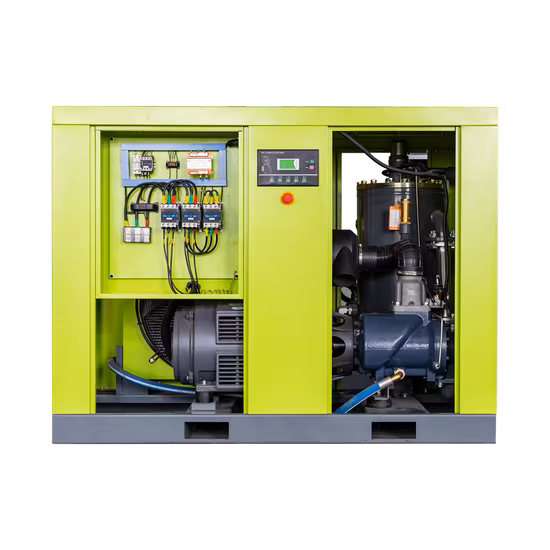

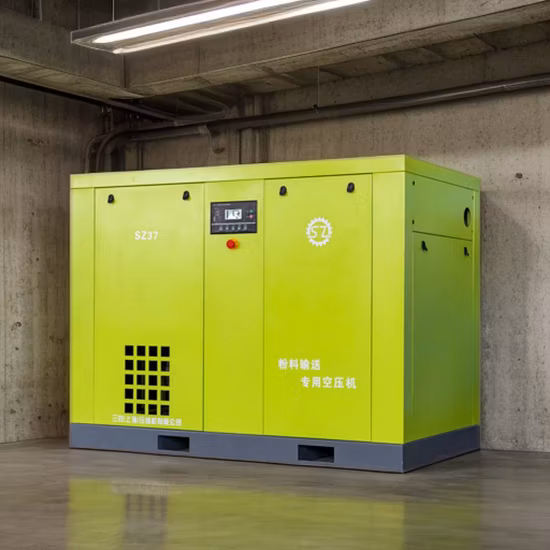

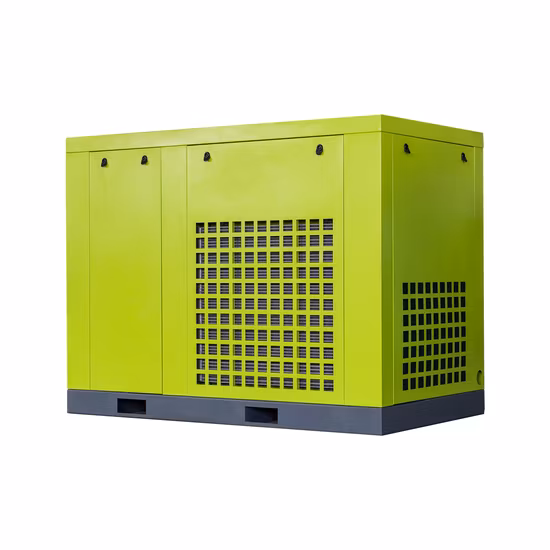

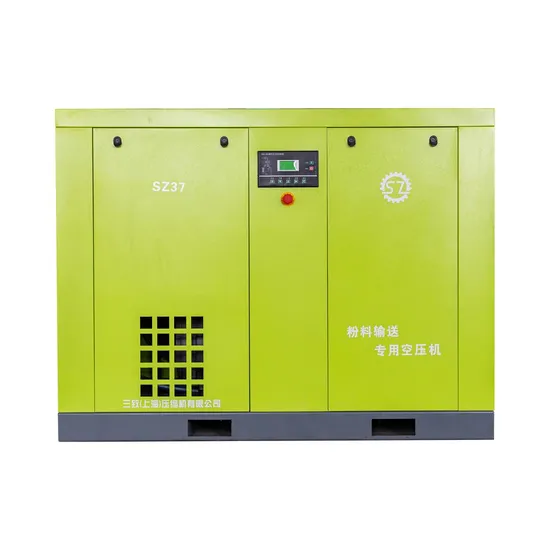

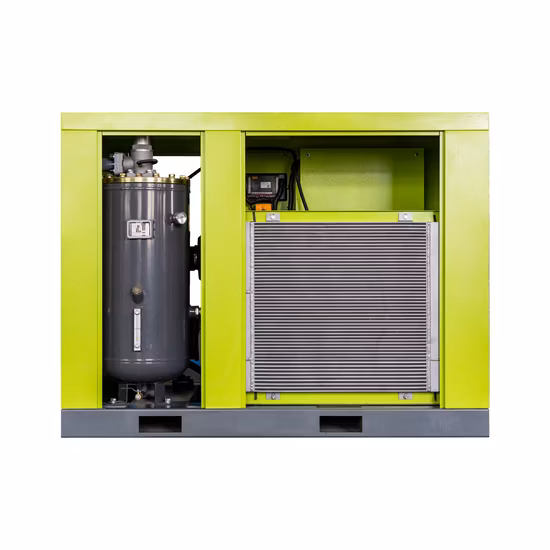

Moair Stationary Type Closed Type Intelligent PLC Control Low Pressure Screw Air Compressor
Basic Info.
Model NO. | MLE110A/3 |
Type | Single Screw Compressor |
Free Air Delivery | 8.34-40.27m3/Min |
Drive Method | Pm,VSD |
Color | Grey |
Working Pressure | 3-5bar |
Working Power | 37-132kw |
Transport Package | Export Standard Package |
Specification | CE |
Trademark | Moair |
Origin | China |
HS Code | 8414809010 |
Production Capacity | 500units/Month |
Product Description
Moair Stationary Type Closed Type Intelligent PLC Control Low Pressure Screw Air Compressor
Product Description
L series permanent magnet rotary screw air compressor 3-5 bar are specially developed for industries that need low air pressure operation such as textile, cement, glass and food. With a low pressure range from 3 bar to 5 bar, the power range of L series is from 37kw to 132kw and the air delivery of that is from 8.34m3/min to 85.82m3/min.
The main engine is a low pressure design developed by MOAIR instead of an ordinary one. When a low pressure compressor is equipped with a common main engine, the air will be largely compressed first and then released, which will lead to unnecessary high energy consumption. However, a professional low pressure main engine will save 10%-20% energy compared with common compressors.
The industrial rotary screw air compressors are equipped with motors with a protection degree of IP54 and inovance frequency inverter, which turn out to be effective, energy-saving, structure-compact and lower noise.
Model | Power | Air Flow /discharge pressure | air outMLEet |
(kW) | (m3/min) / (Mpa) | ||
MLE37A-3 | 37 | 11.62/0.3 | DN80 |
MLE55A-3 | 55 | 17.38/0.3 | DN80 |
MLE75A-3 | 75 | 24.09/0.3 | DN100 |
MLE110A-3 | 110 | 35.77/0.3 | DN125 |
MLE132A-3 | 132 | 38.30/0.35 | DN125 |
MLE37A-3 | 37 | 9.83/0.4 | DN80 |
MLE45A-3 | 45 | 10.84/0.4 | DN80 |
MLE55A-3 | 55 | 15.27/0.4 | DN80 |
MLE75A-3 | 75 | 19.74/0.4 | DN80 |
MLE90A-3 | 90 | 23.08/0.4 | DN80 |
MLE110A-3 | 110 | 29.69/0.4 | DN125 |
MLE132A-3 | 132 | 35.62/0.4 | DN125 |
MLE37A-3 | 37 | 8.34/0.5 | DN80 |
MLE45A-3 | 45 | 10.32/0.5 | DN80 |
MLE55A-3 | 55 | 13.92/0.5 | DN80 |
MLE75A-3 | 75 | 18.11/0.5 | DN80 |
MLE90A-3 | 90 | 21.25/0.5 | DN80 |
Examples of comparison of low pressure compressor's and common compressor's working conditions in the low pressure state:When users' actual need for pressure is 0.4MPa, however, if a 0.8MPa one was used in this case, the compressor will compress the air to 0.8MPa first and then reduce it to 0.4MPa by pressure-reducing valve or other ways. That is to say, the 0.8MPa energy consumption is taken by users.
For example, the actual air delivery of 45kw/0.4MPa low pressure compressor of MOAIR is 10.84 m3min and the actual work is 44.8KW and the specific power is 4.13kw/m3. However, the specific power of common 45kw/0.8MPa compressor is 8.1kw/m3, according to the two level energy efficiency calculation. In this case, professional 0.4MPa low pressure compressor can save nearly 49% energy compared with common ones.
working area*Cement building materials industry (2-3bar) *Chemical fiber textile industryCompany Profile
FAQ
Q1: What 's your factory addressA2: Our company is located in NO.88 Yiyu Road,changshu ,jiangsu,ChinaQ2: How long is our deliveryA2: Our standard delivery time is 30-40 days after confirmation order & receiving recipets for standard compressors, for the other non standard requirement will be discussed case by case.Q3: Can you accept OEM orders? A3: Yes, with professional design team, OEM orders are highly welcome.
